l2tp linux mint 18


: 6
.

Linux Mint Cinnamon 18 x64
, vpn l2tp ipsec ( , sharedkey , ).
networkmanager vpn pptp OpenVPN. networkmanager-l2tp-gnome l2tp-ipsec-vpn. xl2tpd . l2tp networkmanager? . .
: 6
.. Windows.
( , , VPN: L2TP IPsec, L2TP , CHAP, MS-CHAP v2. .) Windows , Linux . .
: 0
- - ? http://nastroisam.ru/bilajn-l2tp-i-linux/#comment-70478 17 18
'\xd0\x94\xd0\xb0\xd0\xbd\xd0\xbd\xd1\x8b\xd0\xb9 PPA \xd0\xbd\xd0\xb5 \xd0\xbf\xd0\xbe\xd0\xb4\xd0\xb4\xd0\xb5\xd1\x80\xd0\xb6\xd0\xb8\xd0\xb2\xd0\xb0\xd0\xb5\xd1\x82 xenial'
PPA: '\xd0\x94\xd0\xb0\xd0\xbd\xd0\xbd\xd1\x8b\xd0\xb9 PPA \xd0\xbd\xd0\xb5 \xd0\xbf\xd0\xbe\xd0\xb4\xd0\xb4\xd0\xb5\xd1\x80\xd0\xb6\xd0\xb8\xd0\xb2\xd0\xb0\xd0\xb5\xd1\x82 xenial'.
: 104
sudo apt-add-repository ppa:seriy-pr/network-manager-l2tp
sudo apt-get update
sudo apt-get install network-manager-l2tp-gnome
sudo service xl2tpd stop
sudo update-rc.d xl2tpd disable
: 3
ppa:seriy-pr/network-manager-l2tp mint 18. xl2tpd - . !
: 6
:
1. :
PHP:
  1. sudo apt-get install vpnc
vpnc. etc/vpnc/default.conf
IPSec gateway < >
Domain < >
IPSec ID < > - Cisco ASA "DefaultRAGroup"
IKE Authmode psk
IPSec secret < (Shared key)>
Xauth username <>
Xauth password <>
:
PHP:
  1. sudo vpnc connect default.conf

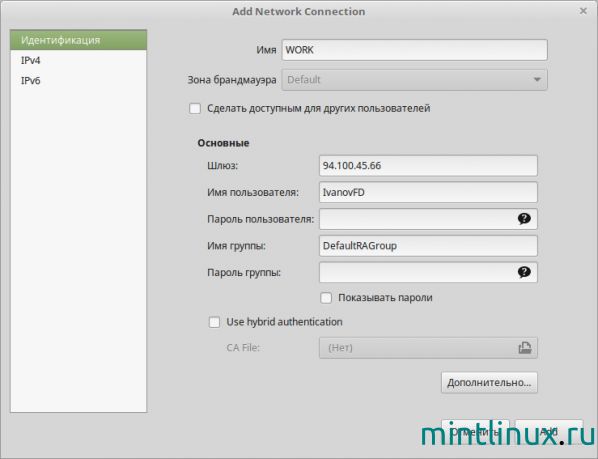

2. GUI Network manager
PHP:
  1. sudo apt-get install vpnc
  2. sudo apt-get install network-manager-vpnc
  3. sudo apt-get install network-manager-vpnc-gnome
: 50
VPNPPTP l2tp. . .deb . .
: 3
-, ... , , , , ...
: http://www.cyberforum.ru/ubuntu-linux/thread1774361.html

.
1) sudo su
2) apt install intltool libtool network-manager-dev libnm-util-dev libnm-glib-dev libnm-glib-vpn-dev libnm-gtk-dev libnm-dev libnma-dev ppp-dev strongswan libdbus-glib-1-dev libsecret-1-dev libgtk-3-dev libglib2.0-dev xl2tpd&&git clone https://github.com/nm-l2tp/network-manager-l2tp.git&&cd network-manager-l2tp&&autoreconf -fi&&intltoolize&&./configure --disable-static --prefix=/usr --sysconfdir=/etc --libdir=/usr/lib/x86_64-linux-gnu --libexecdir=/usr/lib/NetworkManager --localstatedir=/var --with-pppd-plugin-dir=/usr/lib/pppd/2.4.7&&make&&make install&&apparmor_parser -R /etc/apparmor.d/usr.lib.ipsec.charon&&apparmor_parser -R /etc/apparmor.d/usr.lib.ipsec.stroke&&apt remove xl2tpd&&apt install libpcap0.8-dev&&wget https://github.com/xelerance/xl2tpd/archive/v1.3.6/xl2tpd-1.3.6.tar.gz&&tar xvzf xl2tpd-1.3.6.tar.gz&&cd xl2tpd-1.3.6&&make&&make install&&echo "END!!!!!!"
:

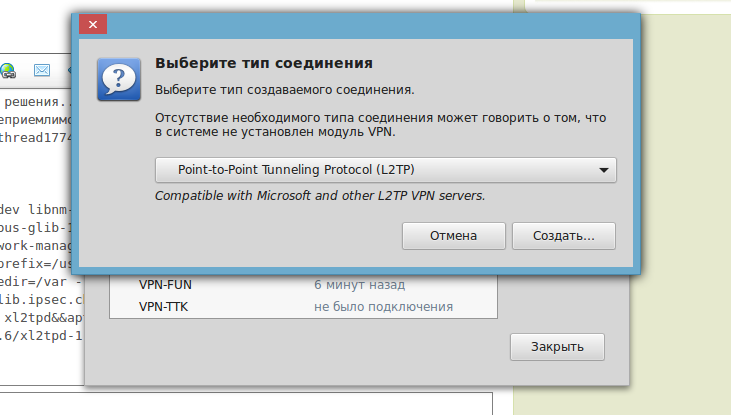

20161108231203_9ogm9.png | 57,43 | : 1038
: 90
?



sudo apt install intltool libtool network-manager-dev libnm-util-dev libnm-glib-dev\
libnm-glib-vpn-dev libnm-gtk-dev libnm-dev libnma-dev ppp-dev strongswan\
libdbus-glib-1-dev libsecret-1-dev libgtk-3-dev libglib2.0-dev xl2tpd

Network Manager

git clone https://github.com/nm-l2tp/network-manager-l2tp.git
cd network-manager-l2tp
autoreconf -fi
intltoolize

./configure --disable-static --prefix=/usr --sysconfdir=/etc --libdir=/usr/lib/x86_64-linux-gnu\
--libexecdir=/usr/lib/NetworkManager --localstatedir=/var\
--with-pppd-plugin-dir=/usr/lib/pppd/2.4.7

make
sudo make install

AppArmor IPSEC

sudo apparmor_parser -R /etc/apparmor.d/usr.lib.ipsec.charon
sudo apparmor_parser -R /etc/apparmor.d/usr.lib.ipsec.stroke

x2ltpd libpcap

sudo apt remove xl2tpd
sudo apt install libpcap0.8-dev

wget https://github.com/xelerance/xl2tpd/archive/v1.3.6/xl2tpd-1.3.6.tar.gz
tar xvzf xl2tpd-1.3.6.tar.gz
cd xl2tpd-1.3.6
make
sudo make install

: 1 (: 30 2016 19:43)
: 1
) xl2tpd ,
: 1
, 18.3 ) 3 , ... 4 ) https://www.techrepublic.com/article/how-to-add-the-l2tp-vpn-option-to-network-manager-in-linux/
: 1
:

, 18.3 ) 3 , ... 4 ) https://www.techrepublic.com/article/how-to-add-the-l2tp-vpn-option-to-network-manager-in-linux/

, . , .
: 1


32 13 18 64
sudo /usr/lib/NetworkManager/nm-l2tp-service --debug
[sudo] ux:
nm-l2tp[1915] <debug> nm-l2tp-service (version 1.2.8) starting...
nm-l2tp[1915] <debug> uses default --bus-name "org.freedesktop.NetworkManager.l2tp"
nm-l2tp[1915] <info> ipsec enable flag: yes
** Message: Check port 1701
** Message: Can't bind to port 1701
nm-l2tp[1915] <warn> L2TP port 1701 is busy, using ephemeral.
connection
id : "121121" (s)
uuid : "472df4a5-d0a4-4bec-bf93-7388c924b85b" (s)
interface-name : NULL (sd)
type : "vpn" (s)
permissions : ["user:ux:"] (s)
autoconnect : FALSE (s)
autoconnect-priority : 0 (sd)
timestamp : 0 (sd)
read-only : FALSE (sd)
zone : NULL (sd)
master : NULL (sd)
slave-type : NULL (sd)
autoconnect-slaves : ((NMSettingConnectionAutoconnectSlaves) NM_SETTING_CONNECTION_AUTOCONNECT_SLAVES_DEFAULT) (sd)
secondaries : [] (s)
gateway-ping-timeout : 0 (sd)
metered : ((NMMetered) NM_METERED_UNKNOWN) (sd)
lldp : -1 (sd)


ipv6
method : "auto" (s)
dns : [] (s)
dns-search : [] (s)
dns-options : NULL (sd)
addresses : ((GPtrArray*) 0x1981b60) (s)
gateway : NULL (sd)
routes : ((GPtrArray*) 0x1981c20) (s)
route-metric : -1 (sd)
ignore-auto-routes : FALSE (sd)
ignore-auto-dns : FALSE (sd)
dhcp-hostname : NULL (sd)
dhcp-send-hostname : TRUE (sd)
never-default : FALSE (sd)
may-fail : TRUE (sd)
dad-timeout : -1 (sd)
dhcp-timeout : 0 (sd)
ip6-privacy : ((NMSettingIP6ConfigPrivacy) NM_SETTING_IP6_CONFIG_PRIVACY_UNKNOWN) (sd)
addr-gen-mode : 1 (sd)


ipv4
method : "auto" (s)
dns : [] (s)
dns-search : [] (s)
dns-options : NULL (sd)
addresses : ((GPtrArray*) 0x1981ce0) (s)
gateway : NULL (sd)
routes : ((GPtrArray*) 0x7f67c0001260) (s)
route-metric : -1 (sd)
ignore-auto-routes : FALSE (sd)
ignore-auto-dns : FALSE (sd)
dhcp-hostname : NULL (sd)
dhcp-send-hostname : TRUE (sd)
never-default : FALSE (sd)
may-fail : TRUE (sd)
dad-timeout : -1 (sd)
dhcp-timeout : 0 (sd)
dhcp-client-id : NULL (sd)
dhcp-fqdn : NULL (sd)


vpn
service-type : "org.freedesktop.NetworkManager.l2tp" (s)
user-name : "ux" (s)
persistent : FALSE (sd)
data : ((GHashTable*) 0x1978b60) (s)
secrets : ((GHashTable*) 0x19789e0) (s)
timeout : 0 (sd)


nm-l2tp[1915] <info> starting ipsec
Stopping strongSwan IPsec failed: starter is not running
Starting strongSwan 5.3.5 IPsec [starter]...
Loading config setup
Loading conn '472df4a5-d0a4-4bec-bf93-7388c924b85b'
found netkey IPsec stack
nm-l2tp[1915] <info> Spawned ipsec up script with PID 1982.
initiating Main Mode IKE_SA 472df4a5-d0a4-4bec-bf93-7388c924b85b[1] to 78.36.18.47
generating ID_PROT request 0 [ SA V V V V ]
sending packet: from 10.0.2.15[500] to 78.36.18.47[500] (224 bytes)
sending retransmit 1 of request message ID 0, seq 1
sending packet: from 10.0.2.15[500] to 78.36.18.47[500] (224 bytes)
nm-l2tp[1915] <warn> Timeout trying to establish IPsec connection
nm-l2tp[1915] <info> Terminating ipsec script with PID 1982.
Stopping strongSwan IPsec...
destroying IKE_SA in state CONNECTING without notification
nm-l2tp[1915] <warn> Could not establish IPsec tunnel.

(nm-l2tp-service:1915): GLib-GIO-CRITICAL **: g_dbus_method_invocation_take_error: assertion 'error != NULL' faile

|
:
, .
